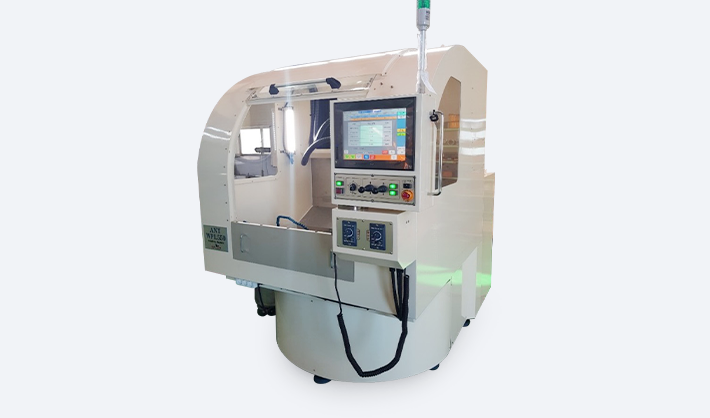

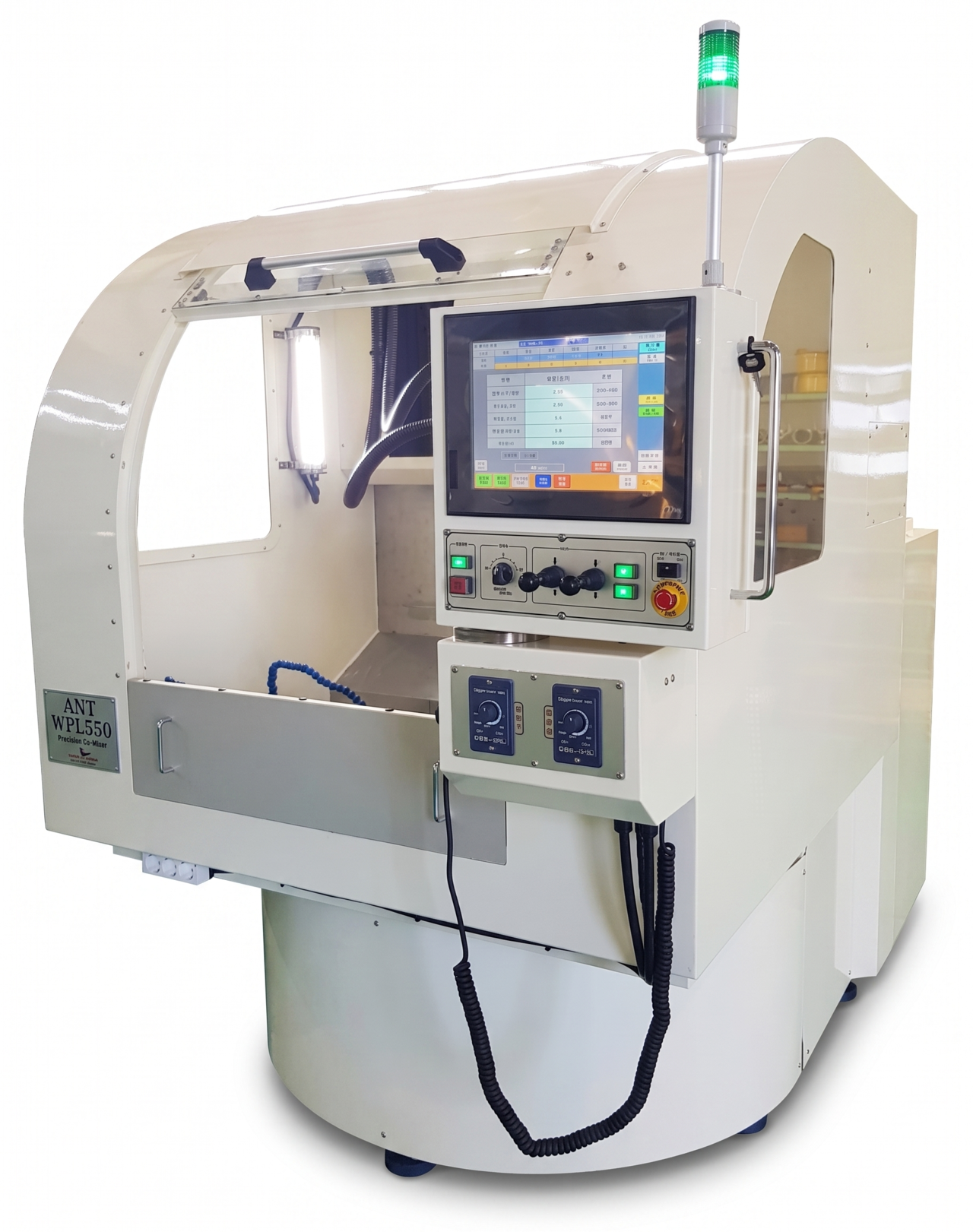

Control Shaft | Simultaneous 6-axis, Synchronous 5-axis control | Macro Program - Machining time setting | |
SERVO MOTOR | YASKAWA Σ7 | ||
Machine Body | GC300 Table | metal(casting) gross weight : 2,200kg | |
Axis motion range | X-axis | 550mm (V=500mm/sec) |
|
Y-axis | 390mm (V=500mm/sec) |
| |
Z-axis | 250mm (V=200mm/sec) |
| |
Z2-axis | 20mm (V=200mm/sec) |
| |
T-axis | 90º(V=25º/sec) Worm gear & Servo. Disk Break |
| |
B-axis | Table Rotary. Add Reducer(5:1) (max: 120rpm) |
| |
Spindle Head | Polishing Method | Rotary & Stroke(X,Z Axis Slide) Method |
|
Toll press force | Max 5kgf (Tool Clamp) | Collet ER25 (MAX 16Ø) | |
Tool drive method | AC SERVO MOTOR(400W) | 80ADA (750W) | |
Z2 CYLINDER pressure | 5~50kg/cm² (apply LOADCELL) | Load sensing DISPLAY (LOADCELL 50kg) | |
RPM | Up to 4,500(3,000)RPM | SERVO - YASKAWA | |
Spindle Shaft | Ø20 (C7004-P5) |
| |
Tool Change | Manual A.T.C (ISO20) |
| |
OP PANEL | M21 - COLOR 12º TFT liquid crystal display |
| |
CONTROLLER | Mitsubishi P.L.C 6-Axis Controller |
| |
Communication function | RS232C, USB port |
| |
Work maximum area / load weight | Ø500mm / 60~80kg |
| |
Equipment dimensions | 1,300 x 2,100 x 2,000 (W*L*H) |
| |
